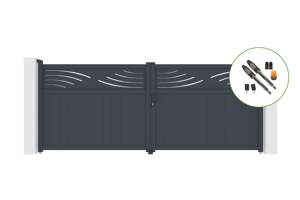

Electric swing gate 4m HALTI 400B160 gray + TANKER B700 motorization

SKU : PAC-000845

27819 kr

This motorized gate pack contains:
Gray HALTI design swing gate
Width 400cm and Height 160cm
Actuator motorization (up to 700kg)

Victim of his success!

Alert me

Notify me when this product is back in stock.

Technical data

Aluminium swing gate 4m HALTI 400B160

Height

160,7 cm

Locking system

Cylinder lock

Compatible motorization type

With articulated arms and cylinders

Stud/rail assembly

Self-drilling screws

Warranty

2 an(s)

Available in sliding

Yes

Pivoting system

Ball bearing

Width between pillars

401,7 cm

Compatible engines

Yes

Aluminium swing gate 4m HALTI 400B160

Height

160,7 cm

Locking system

Cylinder lock

Compatible motorization type

With articulated arms and cylinders

Stud/rail assembly

Self-drilling screws

Warranty

2 an(s)

Available in sliding

Yes

Pivoting system

Ball bearing

Width between pillars

401,7 cm

Compatible engines

Yes

Amounts Section

78*47 mm

Sleeper Section

77*30 mm

Pattern / Design

HALTI

Finishing

mast

RAL

7016

Recommended number of persons for assembly

End stop

Thickness of the blades

Operating clearance

Blade section

Supplied accessories

Yes

Eligibility Extension of warranty 10 years

Assembly time

8 h

Assembly instructions

Yes

Sleeper thickness

2 mm

Number of lower hinges

Handle material

Aluminium

Opening direction

Towards the house, See Technical diagram

Rod assembly

Self-drilling screws

Type of lock

4 Keys

Width

396,7 cm

Top cover cap

Yes

Eligibility Extended warranty 5 years

Color

Anthracite Grey

Opening system

Fighting

Stud thickness

1,4 mm

Number of upper hinges

Main material

Aluminium

Handle colour

Black

Type of filling

half openworked

Central stop

Yes

Frame material

Aluminium

Minimum pillar height

175 cm

Weight of package No.1

13.5 kg

TANKER B700 swing gate motorization

Adjustment of the opening and closing speed

Yes

Maximum number of associable remote controls

Key lock compatible

Yes

Obstacle detection

Yes

Warranty

2 an(s)

Assembly time

4 h

External battery compatible

Yes

Photocell Compatible

Yes

Flashing light compatible

Yes

Arm speed in centimeters per second

2.4cm/s

Keyboard compatible

Yes

Maximum size per fan

3 m

Electronic cabinet with electronic board

Includes

Length of open arm

121,8 cm

Type of mechanism

Cylinder casement

Maximum opening angle

120 °

Operating temperature

-45°C à +50°C

Infrared photocells included x2

Yes

Housing size

25,5 x 18 x 8 cm

Maximum thrust

3500 Nm

Recommended number of persons for assembly

Assembly instructions

Yes

Protection against rain

IP55

Co-ownership mode

Yes

Gradual opening / closing

Yes

Power consumption

80 W

Power

24 V

Number of remote control keys

Number of remote controls included

Minimum opening angle

90 °

Eligibility Extension of warranty 10 years

Compatible for portals

Aluminum, pvc, wood, iron

Supply voltage

220VAC±10%/110VAC±10%

Central gate stop included

Yes

Gate mounting brackets included

Yes

Partial pedestrian opening

Yes

Gate weight up to

700 kg

Nominal operating thrust

3000 Nm

Arm rotation speed in revolutions per minute

350 tr/min

Screws included

Yes

Automatically programmable closing after opening

Yes

Mounting accessories included

Yes

LED flashing light included

Yes

Eligibility Extended warranty 5 years

Pole mounting brackets included

Yes

Maximum weight per fan

350 kg

Gross weight

23 kg

Manual release

Yes

Length of the closed arm

86,8 cm

Amperage

5,5 A

Opening time

about 14 seconds.

Weight of package No.2

24.0 kg

Description

This motorized gate pack contains:
Gray HALTI design swing gate
Width 400cm and Height 160cm
Actuator motorization (up to 700kg)

Aluminium swing gate 4m HALTI 400B160

The HALTI Driveway swing gate, with its classic design, is given a modern and unique touch by the decorative plate with the "Nature" motif …

Aluminium swing gate 4m HALTI 400B160

The HALTI Driveway swing gate, with its classic design, is given a modern and unique touch by the decorative plate with the "Nature" motif which covers the entire upper part of the gate.

Description : Design double swing gate with pattern, vertical board
Material : Aluminium
Colour : Anthracite grey (RAL 7016)
Dimensions : Width 397cm x Height 161cm
Required width between pillars: 402cm
Minimum height of pillars : 175cm
Inspired and designed in France

This contemporary swing gate kit, to be assembled and installed by yourself, contains :
- 24 powder-coated aluminium slats (Width 15.5cm)
- 2 decorative aluminium plates with "Nature" motif (Thickness 20/100)
- 2 upper hinges
- 2 lower hinges
- 2 receiving stop
- 1 middle stop
- 1 cylinder lock
- 1 handle (Colour Black)
- 5 keys
- Finishing caps
- Screws and bolts

The central crosspieces of this double swing gate have been designed to be reinforced so that you can motorise it later if you wish.
You will find promotional packs offering you a set consisting of a swing gate of your choice accompanied by the appropriate gate automation.

If your installation requires pillars, Casanoov offers promotional packages in the "Swing Gate" category
These packages contain one aluminium swing gate of your choice, together with two aluminium posts to match the chosen dual swing gate.

The HALTI model is also available in other sizes.
Also available as a pedestrian or sliding gate

Driveway Gate delivered in kit form
Clear instructions, quick and easy assembly
You will find all the necessary information about this product in the technical data

TANKER B700 swing gate motorization

The TANKER B700 actuator motor is ideal for motorizing swing gates with a maximum length of 6 meters and weighing up to 700 kg maximum (i.e. 3 meters and 350 kg maximum per leaf).

Specially designed for gates with swings, this automatic actuator will allow you to motorize any type of swing gate, whether new or existing, in iron, aluminium, PVC or even wood.

Its sober design allows you to benefit from an easy-to-use electric gate with substantial power, without distorting the aesthetics of your gate and harming your exterior.

This motorization is made up of two motor arms with cylinders, each intended to motorize one leaf of your gate.
The pistons located inside the cylinders come out to close the gate and conversely retract when opening.

Delivered with its clear and detailed assembly instructions, you will motorize your gate easily and quickly!
Our assembly instructions have been designed to guide you step by step through the correct operation of your automation using clear instructions accompanied by illustrations to facilitate your understanding.
In case of need or difficulty, our Casanoov technical team is there to assist you.

The engine includes:

- 2 motors with an electrical voltage of 24 Volts / 80 Watts
- A control box
- A central gate stop
This stopper is to be used if you have a tilting stopper for manual gates.
In fact, when you motorize your swing gate, you must ensure that the central stop does not hold it back.
It is your motorization which will have the function of locking and securing your swing gate.
- 2 mounting brackets for pillar allowing several opening angle configurations.
- 2 mounting brackets to fix your motorization to your swing gate
- 2 4-key remote controls with protective flap (Batteries included)
- Screws to fix the motorization on your posts

Accessories included with the B700 motorisation:

- 1 flashing LED lamp with a power of 3 Watts (equivalent to a power of 30W for an old generation incandescent type bulb)
- 1 pair of infrared photocells including: 'transmitter' photocell and 'receiver' photocell

Accessories not included with the B700 motorisation:

The screws to fix the motorization on the gate.
This hardware must be adapted to each type of gate and chosen according to the thickness of your gate.
For Casanoov Swing gates, we advise you to fix your motorization arms with blind rivets of the Rivkle type with a length of between 8 and 12mm. The mounting bracket must be positioned on the reinforced blades provided for this purpose on all our swing gates and gates.

Features of the TANKER B700 engine:

- Inward and outward opening
- Opening angle included up to 120°
- The opening angle is conditioned by your installation constraints (You will find all the installation instructions in the instructions for free download on the product page)
- Manual disengagement of the motorization in the event of a power cut
- Length of the retracted product 86.8 cm
- Length of the open product 121.8 cm. Arm working length is 46.7cm
- The internal rotation speed is 350 revolutions per minute, almost 60% faster than the B150 model!
- Arm extension speed: 2.4cm / second
- Opening performance may vary when using soft open and soft close mode
- The opening and closing speed as well as the drive power can be adjusted to 20 different positions.
- After opening, the closing of the gate can be automatic according to your chosen time interval between 0 and 99 seconds
- Pedestrian mode: You can choose to open only one out of two leaves
- Rain protection class: IP 55
- Motor weight: 23 Kg
- Operating temperature: -45°C to +50°C
- Push force 1090N and maximum force 1110N
- Electrical connection power between your house and the motor: 20VAC±10%/110VAC±10%
- Auto stop function: If your gate encounters an obstacle then the opening or closing of the gate is automatically interrupted

You can associate external accessories with an operating power of 24V such as: emergency battery, magnetic or electric lock, push button

Installation Tips:

Always check that your installation distances are included in the installation table. The installation distances determine the opening angle of your gate.
Our Casanoov technical team is there to assist you.
