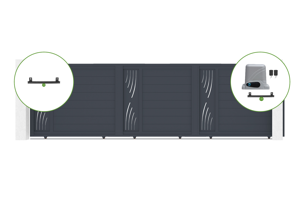

Sliding gate 5m VELETA H.140cm aluminum + RANGER C300 motorization

SKU : PAC-002155
53697 kr 39669 kr
-250€ (-£208) on Design aluminum packs with the code PACKFRIDAY

  • This pack contains:
  • Gray VELETA aluminum sliding gate
  • Width: 498cm and Height: 140cm
  • Rack motorization (up to 300kg)

In stock - Delivery between 29/11 and 04/12
Free shipping


Technical data

    Sliding gate 5m VELETA H.140 gray aluminum

  • Main material

    Aluminium

  • Thickness of the blades

    1.2 mm

  • Recommended number of persons for assembly

    2

  • Required discharge length

    5 m

  • Locking system

    Barrel lock

  • Sleeper Section

    70*30 mm

  • Guide system

    Upper guide with 6 nylon olives

  • Stud thickness

    1.5 mm

  • RAL

    7016

    Sliding gate 5m VELETA H.140 gray aluminum

  • Main material

    Aluminium

  • Thickness of the blades

    1.2 mm

  • Recommended number of persons for assembly

    2

  • Required discharge length

    5 m

  • Locking system

    Barrel lock

  • Sleeper Section

    70*30 mm

  • Guide system

    Upper guide with 6 nylon olives

  • Stud thickness

    1.5 mm

  • RAL

    7016

  • Assembly time

    8 h

  • Frame material

    Aluminium

  • Warranty

    2 an(s)

  • Number of wheels

    6

  • Amounts Section

    78*47 mm

  • Exists by beating

    No

  • Pattern / Design

    VELETA

  • Compatible engines

    Yes

  • Assembly instructions

    Yes

  • Compatible motorization type

    Sliding

  • Sleeper thickness

    1.2 mm

  • Required pillar height

    160 cm

  • Length of the tail of the sliding gate

    --

  • Height

    149 cm

  • Type of lock

    5 keys

  • Width

    498 cm

  • Handle material

    Aluminium

  • Operating clearance

    26 mm

  • Length of steel rail

    10 m

  • Width between pillars

    474 cm

  • Supplied accessories

    Yes

  • Finishing

    Sand mat

  • Handle colour

    Black

  • Type of filling

    half openworked

  • Blade width

    155 mm

  • Opening system

    Sliding

  • Eligibility Extension of warranty 10 years

    No

  • Eligibility Extended warranty 5 years

    No

  • Color

    Charcoal grey

  • Rod assembly

    Self-drilling screws

  • Stud/rail assembly

    Self-drilling screws

  • Opening direction

    left to right / right to left

  • Weight of package No.1

    4.3 kg

  • Driveway sliding gate operator RANGER C300

  • Type of mechanism

    Sliding

  • Compatible for portals

    Aluminium, pvc, wood, iron

  • Power

    230 V

  • Supply voltage

    220VAC±10%/110VAC±10%

  • Power consumption

    250 W

  • Amperage

    --

  • Nominal operating thrust

    1090 Nm

  • Maximum thrust

    1100 Nm

  • Rotational speed of the pinion in revolutions per minute

    1400

  • Opening / closing speed in meters per minute

    12m/min

  • Opening time for a 3m gate

    15 s

  • Gate weight up to

    300 kg

  • Protection against rain

    IP55

  • Operating temperature

    -25°C to +55°C

  • Opening right to left

    Yes

  • Opening left to right

    Yes

  • Manganese limit switches

    Yes

  • Mechanical spring limit switches

    No

  • Gable material

    Alloy

  • Number of sprocket teeth

    16

  • Automatically programmable closing after opening

    Yes

  • Manual release

    Yes

  • Co-ownership mode

    Yes

  • Obstacle detection

    Yes

  • Photocell Compatible

    Yes

  • Flashing light compatible

    Yes

  • External battery compatible

    No

  • Keyboard compatible

    Yes

  • Key lock compatible

    Yes

  • Gradual opening / closing

    Yes

  • Adjustment of opening and closing speed

    Yes

  • Maximum number of associable remote controls

    30

  • Number of remote controls included

    2

  • Number of remote control keys

    4

  • Nylon rack included

    Yes

  • Instructions / screws included

    Yes

  • Infrared photocells included x2

    No

  • LED flashing light included

    No

  • Gross weight

    7 kg

  • Partial pedestrian opening

    Yes

  • Warranty

    2 an(s)

  • Eligibility Extended warranty 5 years

    No

  • Eligibility Extension of warranty 10 years

    No

  • Assembly time

    4 h

  • Recommended number of persons for assembly

    2

  • Assembly instructions

    Yes

  • Mounting accessories supplied

    Yes

  • Weight of package No.2

    12.8 kg

  • 4 meter nylon rack for GEAR sliding gate

  • Weight of package No.3

    5.5 kg

Description

  • This pack contains:
  • Gray VELETA aluminum sliding gate
  • Width: 498cm and Height: 140cm
  • Rack motorization (up to 300kg)

Sliding gate 5m VELETA H.140 gray aluminum

Discover the unmatched elegance of our VELETA XL aluminum sliding gate decorated with its decorative plates with "Nature" style patterns

Thanks to its …

Sliding gate 5m VELETA H.140 gray aluminum

Discover the unmatched elegance of our VELETA XL aluminum sliding gate decorated with its decorative plates with "Nature" style patterns

Thanks to its 5-meter length, it is perfectly suited to large entrances, guaranteeing easy access and secure parking for your vehicles.

Its timeless anthracite gray color will harmonize with all architectural styles, from contemporary to traditional.

The decorative plates with the "Nature" pattern add an organic and original touch, transforming your entrance into a true work of art when natural light decides to pass through.

Made of aluminum, this XL gate combines lightness and robustness, weatherproof while minimizing its maintenance.

Opt for the perfect combination of functionality and aesthetics with our VELETA aluminum sliding gate.

Description: Semi-openwork straight sliding gate with decoration
Material: Aluminum
Color: Anthracite gray RAL 7016
Type of Pattern: "Nature"
Dimensions: Width 474 cm x Height 147 cm
Total width required with clearance: 948 cm
Minimum height of pillars: 160 cm
Inspired and designed in France

This gate kit to assemble and install by yourself contains:
- 24 thermo-lacquered aluminum slats (Height 16 cm)
- 2 decorative aluminum plates with "Nature" pattern (Thickness 20/100)
- 1 upper guide composed of 4 nylon rollers
- 9.48m steel guide rail
- 4 steel rollers
- 1 reception strike
- 1 reception stop
- 1 barrel lock
- 1 Handle (Black color)
- 5 keys
- Finishing caps
- Screws

If you want to motorize your sliding gate, promotional packs are available under this product sheet.

The posts are not included in our kits because they are not essential for the installation of your sliding gate in the event that your exterior already has pillars/posts.

To ensure a safe and stable installation of the sliding gate, the posts must have a minimum height of 160 cm and a width of at least 20 cm.

If your installation requires pillars, we offer promotional packs including an aluminum sliding gate of your choice, accompanied by two aluminum posts adapted to the chosen entrance gate.

The VELETA XL model is also available in other dimensions.
Also available in swing and wicket versions.

To personalize your sliding gate, you can change the direction or position of the decorative plates

Gate delivered in kit form.
Clear instructions, quick and easy assembly.
Find all the necessary information about this product in the Technical characteristics

It is technically possible to assemble your gate with an opening from right to left.
Our sliding gate assembly instructions have been designed to offer you two different installation options depending on the chosen opening direction: from left to right or from right to left (finishing strip on the outside).
For any further information, please contact our customer service via our contact form.


Driveway sliding gate operator RANGER C300

The RANGER C300 sliding gate motor is designed for users wishing to motorise their sliding gate to automate its opening and closing. It allows you to transform your gate into an electric sliding gate.
This rack and pinion motor is suitable for all types of sliding gates that can be motorised.
Whether it is for a PVC, wood, aluminium or iron sliding gate, this automation can be installed for all models weighing less than 300kg.


Accessories included :
2 remote controls with 4 buttons
Nylon rack (4m - 12 pieces of 33cm)
Screws
Fixing accessories


4 meter nylon rack for GEAR sliding gate


Technical drawings

Sliding gate 5m VELETA H.140 gray aluminum


Sliding gate 5m VELETA H.140 gray aluminum


Driveway sliding gate operator RANGER C300


4 meter nylon rack for GEAR sliding gate
